Off-highway harnesses have the hardest life in the industry. Our answer is physical: heavier gauge where flexing happens, full conduit coverage rather than partial, and sealed connectors at every exposed interface.
Typical applications
Excavator, loader and dozer main harnesses
Hydraulic control and solenoid valve harnesses
Cab, dashboard and joystick sub-harnesses
Engine and after-treatment sensor harnesses
Lighting and warning system harnesses
Telematics and fleet-monitoring sub-branches
Specification range
Wire range
AWG 20 – AWG 6 for power circuits; heavy-gauge battery and starter leads
Deutsch DT/DTP/HD series, Amphenol, TE, Sumitomo sealed systems
Strain relief
Reinforced breakouts, moulded boots, cable clamps and P-clips
Testing
100% continuity and pin-out; insulation resistance; vibration sampling
Sealing
IP67 / IP6K9K target at exposed interfaces
Temperature
-40 °C to +125 °C at engine-adjacent branches
Standards
IATF 16949:2016 manufacturing system; ISO 9001:2015
Configuration options
Bulkhead and panel-mount connector assemblies
Y-splitters, T-branches and pass-through plates
Fire-retardant and abrasion-resistant sleeving
Field-repairable connector terminations
Product examples

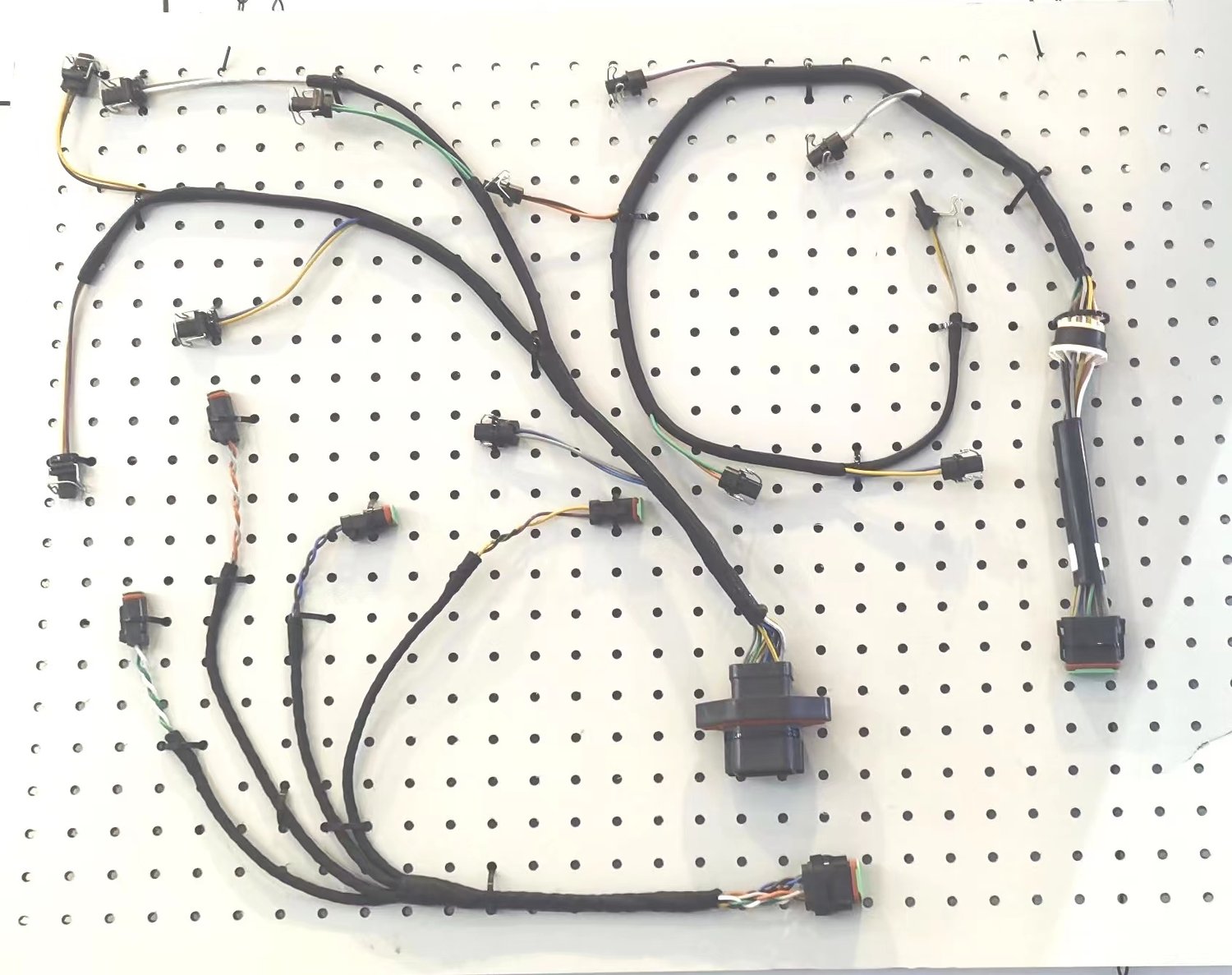

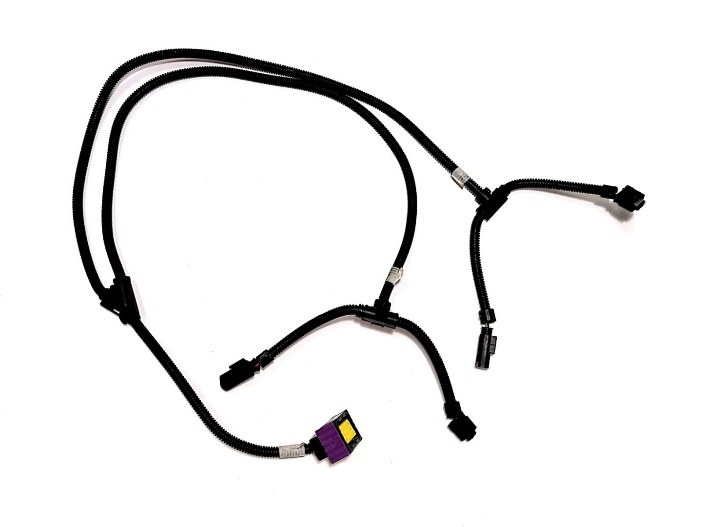

Heavy-duty multi-connector harnessBranch harness with sealed breakoutsTwo-pin sealed connector leadRing-terminal power harnessConduit-covered harness during assembly
Questions on this family
Do you build battery and starter cables for heavy equipment?
Yes. Heavy-gauge battery, starter and ground cables with compression lugs and sealed terminations are quoted as part of the machinery harness programme.
Can harnesses be built for field service replacement?
Yes. We build service-part harnesses on lower volumes, with field-repairable terminations where the maintenance team prefers them.
Certificate scope: our IATF 16949:2016 certificate covers manufacturing of wire harness and excludes product design under Clause 8.3. Specifications shown are the range we manufacture, not a warranty of suitability for a specific application.
