Linkssor builds custom automotive wiring harnesses for passenger vehicles, commercial vehicles and aftermarket programmes — engine, chassis, cabin and diagnostic harnesses. Production runs under IATF 16949:2016 on the Dongguan manufacturing entity, using automated crimping, 100% electrical continuity and short-circuit testing, and crimp cross-section verification.
Vehicle harnesses fail for predictable reasons: underspecified wire gauge, marginal crimp height, missing strain relief at a branch, or a connector that was never qualified for the vibration it sees. Our engineering review targets those four failure modes before a single reel is cut.
Open barrel crimp, closed barrel, ring, spade, ferrules; Sn-plated and Au-plated options
Connectors
TE, Molex, JST, Yazaki, Sumitomo, Aptiv, Deutsch, DT/DTP/DTM series and equivalents
Crimp control
Crimp height, pull-out force and cross-section micro-analysis per lot
Protection
Corrugated conduit, braided sleeve, self-wrapping tape, heat-shrink, grommets and boots
Testing
100% continuity, short-circuit and pin-out test; optional HIPOT and insulation resistance
Temperature
-40 °C to +125 °C depending on wire and insulation selection
Standards
IATF 16949:2016 manufacturing system; customer-specified workmanship criteria on request
Configuration options
Inline and pass-through sealed connectors
Branch-level identification labels and barcode tags
Colour-coded and printed wire marking
Fuse, relay and diode integration
Shielded and twisted-pair signal branches
Product examples

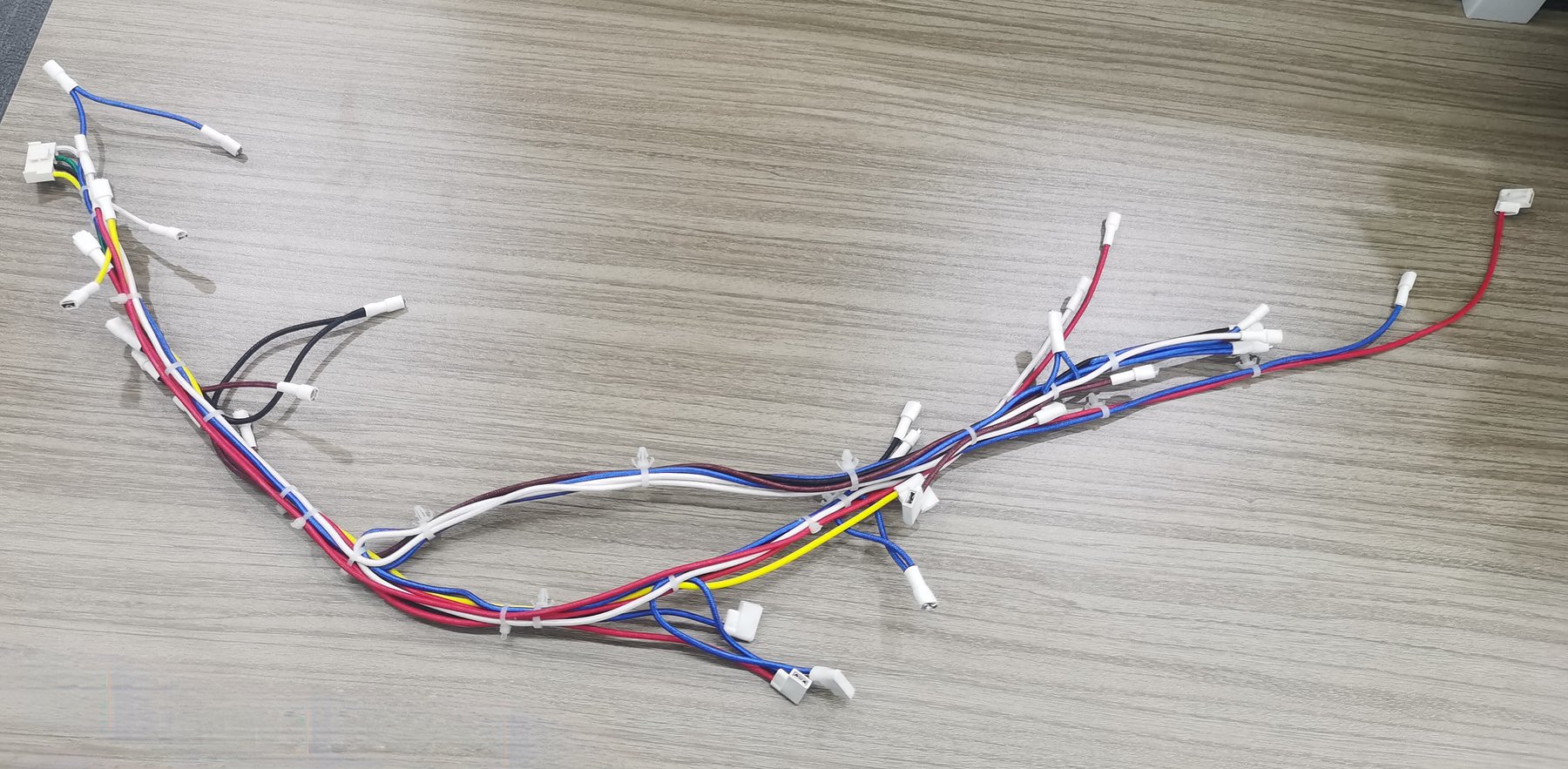

Main harness with integrated fuse boxEngine harness, multi-connectorFlat chassis harnessWide flat harness, long runChassis harness with split branchesConnector and terminal selection
Questions on this family
Can you manufacture from an existing drawing?
Yes — that is our most common programme. Send the 2D/3D drawing, BOM and connector specification. We return a DFM review with any tolerance, gauge or connector concerns, then quote.
Do you reverse engineer from a sample?
Yes. Send the physical sample and we measure cut lengths, identify connectors, seals and wire, then produce a drawing for your approval before building.
What is the minimum order quantity for automotive harnesses?
MOQ depends on connector and terminal availability. Prototype and low-volume batches are accepted; the practical floor is set per part number and quoted individually.
Which certifications apply to automotive harnesses?
Manufacturing is covered by IATF 16949:2016 (certificate 0597346) and ISO 9001:2015. Note that the IATF scope excludes product design under Clause 8.3.
Certificate scope: our IATF 16949:2016 certificate covers manufacturing of wire harness and excludes product design under Clause 8.3. Specifications shown are the range we manufacture, not a warranty of suitability for a specific application.
